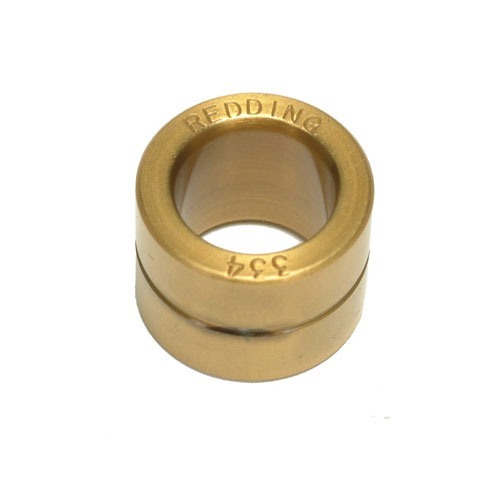

Heat treated steel bushings as above, but with the addition of a Titanium Nitride coating to further increase the effective surface hardness and reduce sizing friction. Bushings are available throughout the range of .185" thru .368" in .001" increments. The last three digits of the part (#RD76XXX) denotes bushing size. .185 to .252 .253 to .305 .306 to .368
Determining Redding Bushing Size
The proper bushing size can be easily determined by measuring the outside neck diameter of your loaded cartridges with a precision micrometer or a dial caliper. Then, simply subtract .001" from the cartridge that had the smallest average neck diameter. This diameter bushing will generally size case necks just enough to create the proper press fit for the bullet.
If you are using a Type “S” style die and not turning the outside of your case necks, we suggest using a bushing .002" smaller than your smallest average neck diameter, and using the expander ball included with your Type “S” die. This size bushing will still give you minimal sizing (maximizing the life of your brass) and the expander ball will insure that each cartridge has the same bullet grip.
Redding has found that when you have cases with neck wall thicknesses on the thin side of the SAAMI tolerance, your fired case will measure considerably larger (.006" to .010" larger) than your loaded rounds. In these circumstances, Redding’s tests have shown that a bushing .001" larger (than the loaded round) may give you the desired bullet grip.
Ocelové bushings s tepelnou úpravou, jak je uvedeno výše, ale s přídavkem povlaku Titanium Nitride, který dále zvyšuje efektivní tvrdost povrchu a snižuje tření při zmenšování. Bushings jsou k dispozici v rozsahu od .185" do .368" v .001" krocích. Poslední tři číslice dílu (#RD76XXX) označují velikost bushingu. .185 do .252 .253 do .305 .306 do .368
Určení velikosti Redding Bushing
Správnou velikost bushingu lze snadno určit změřením vnějšího průměru krčku vašich nabitých nábojů pomocí přesného mikrometru nebo posuvného měřítka. Poté jednoduše odečtěte .001" od náboje, který měl nejmenší průměr krčku. Tento průměr bushingu obvykle dostatečně zmenší krčky nábojnic, aby vytvořil správné upnutí pro projektil.
Pokud používáte typ „S“ a neobrušujete vnější stranu krčků vašich nábojnic, doporučujeme použít bushing o .002" menší než váš nejmenší průměr krčku, a použít expanzní kouli, která je součástí vašeho typu „S“ dies. Tento bushing stále poskytne minimální zmenšení (maximalizuje životnost vašeho mosazného materiálu) a expanzní koule zajistí, že každý náboj má stejný úchop projektilu.
Redding zjistil, že když máte nábojnice s tloušťkou stěny krčku na tenké straně tolerance SAAMI, vaše vystřelené náboje budou měřit výrazně větší (.006" až .010" větší) než vaše nabité náboje. V těchto případech ukázaly testy Redding, že bushing o .001" větší (než nabitý náboj) může poskytnout požadovaný úchop projektilu.
